Applications: photo control for all schreder and non-schreder luminaires

• Materials: Enclosure & Lens - High impact UV stabilized Polycarbonate
• Base – High impact Polybutylene terephthalate
• Photocell – Cadmium Sulfide 0.5" with heat sink (Standard) / 1" (Deluxe)
• ANSI C136.10-1996 Twist Lock
• Time Delay 30~120 seconds
• Temperature compensated
• Various Enclosures
• Lightning Arrester Available
• 1" Photocell Deluxe Version Available

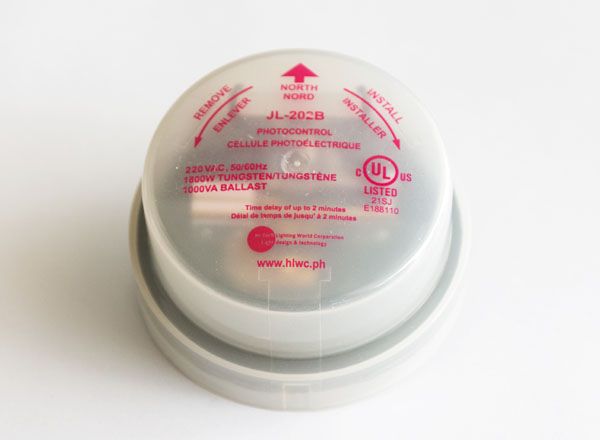

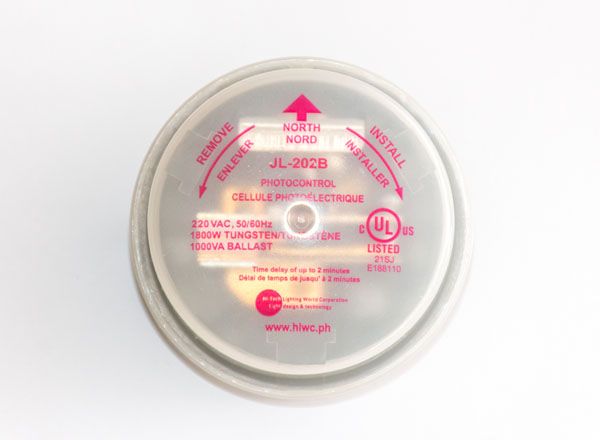

The photo Control 202 series is applicable to control all Schreder and non-Schreder luminaires in accordance with the ambient natural lighting level.

This product is designed on the basis of thermal - bimetallic structure that provides time delay over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time. A temperature compensation system provides consistent performance regardless to the ambient temperature.

This product provides three twist-lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773, 4th Edition, dated Jan.19th, 1995. JL-202 series has been listed by UL Inc for United States and Canada.
